The appropriate utilization of duct insulation is capable of averting leaks, temperature decreases, and the accumulation of condensation. Condensation frequently emerges on account of significant temperature variations. 50mm thick glass wool insulation ensures appropriate and stable temperatures inside your ducts.

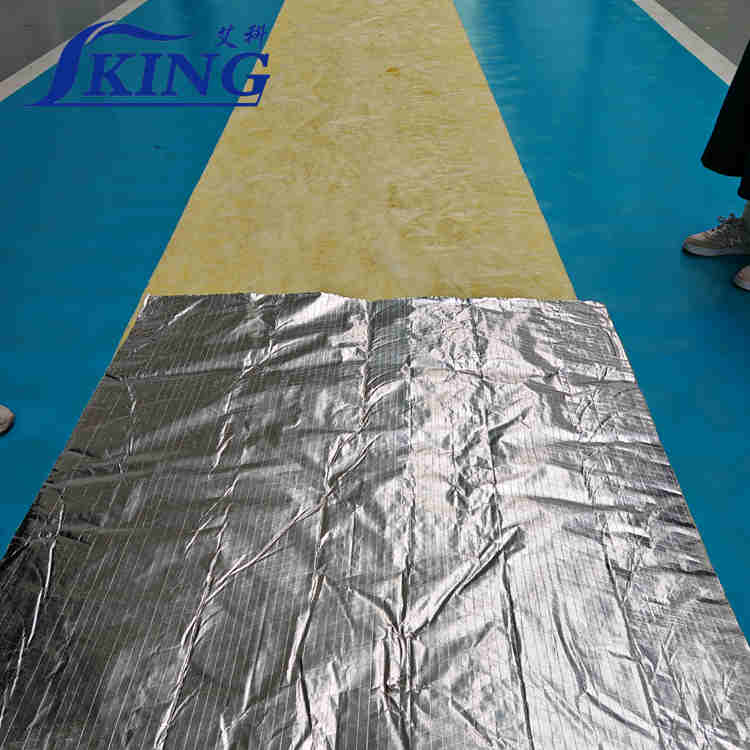

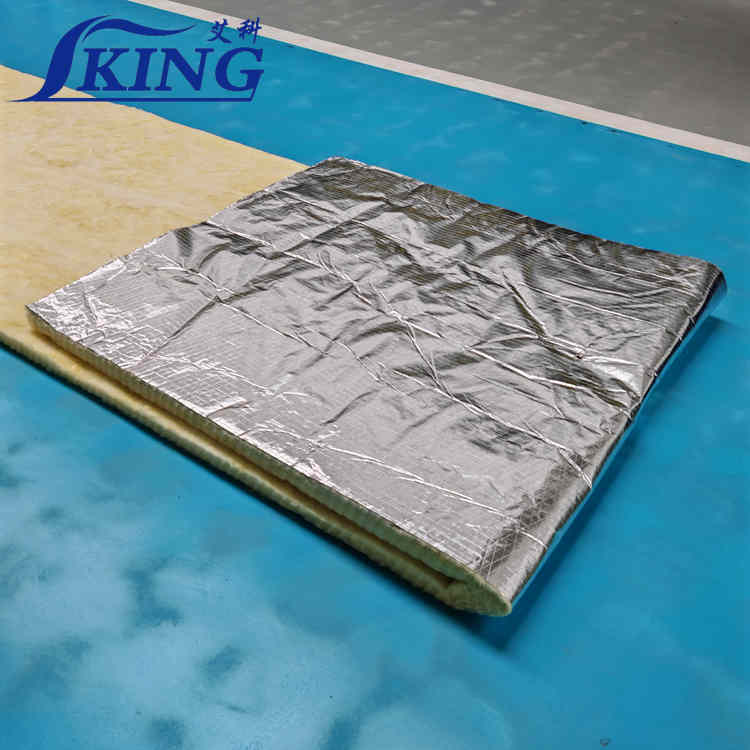

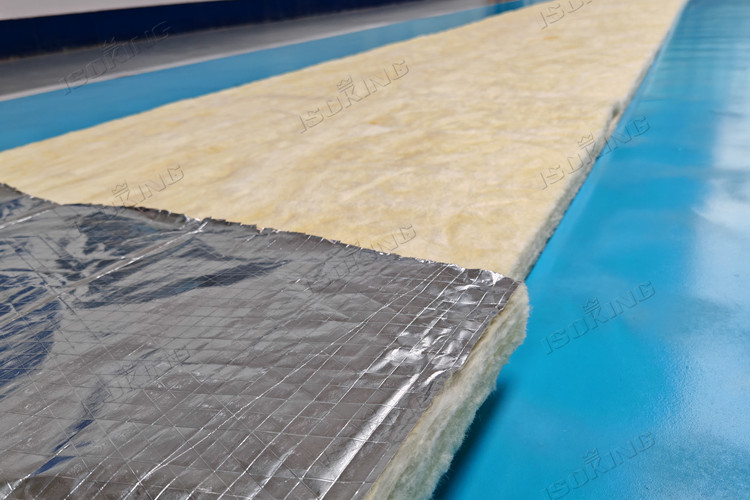

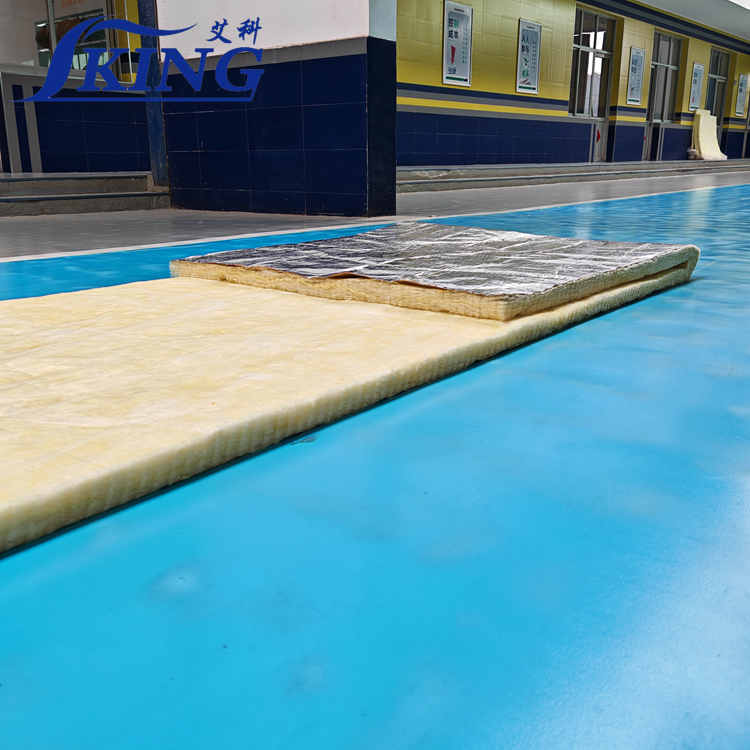

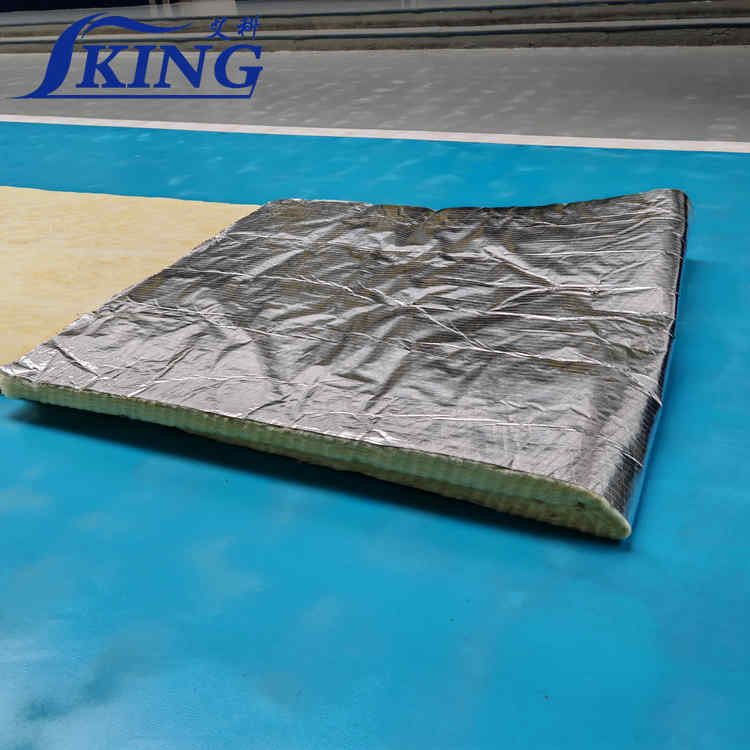

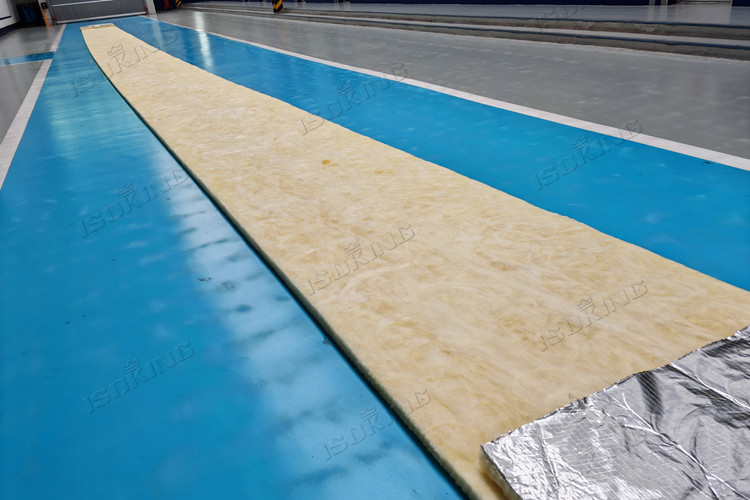

It is a glass wool blanket faced with aluminium foil on one side, 50mm thick glass wool insulation is used for the external thermal insulation of ventilating and air conditioning ducts.
Specification:
Length: from 5m to 30m.
Width: From 400 to 1250mm
Thickness: Between 25 and 200mm
Density: 10 to 48 kg/m3
Packages:
Shrink vacuum package with PE and PP bags
a. plain package without any brand.
b. ISOKING brand package
c. OEM brand, clients' brand.
Application Procedure
Prior to the installation of the blankets, the surfaces of the ducts that will be used must be thoroughly cleaned to ensure they are devoid of dust and grease.
Special self-adhesive fixing pins enable a rapid and straightforward application process. The manner in which the blankets are cut is contingent upon the shape of the duct.
For a rectangular duct system, the length of the blanket to be cut should be calculated as follows: The external perimeter of the duct plus (8 times the blanket thickness) plus 5 centimeters. In the case of a cylindrical duct system, the length of the blanket to be cut should be determined in this way: The external perimeter of the duct plus (2 times the blanket thickness) plus 5 centimeters. The additional 5 centimeters of the flap serves to cover the longitudinal joints once the glass wool is separated from the aluminium foil.
After the blankets have been cut, special self-adhesive pins (at a density of 5 - 6 pins per square meter) are affixed to the duct system. Subsequently, the blankets are placed over the pins. The blankets are held firmly in place by retaining washers. Finally, the flap on the material is secured by means of adhesion, stapling, or self-adhesive aluminium foil tape.
Established in 1995, IKING GROUP is mainly engaged in the production and export of ISOKING glass wool and rock wool insulation in China. After more than 29 years of development, we now possess 13 production lines for insulation glass wool. We have developed our own brand, ISOKING®, and are also capable of conducting OEM production for different brands. With CE, ASTM, and AS NZ certificates in hand, we export fiberglass insulation glass wool to countries such as Bangladesh, the Philippines, Vietnam, Chile, Argentina, Peru, Australia, and New Zealand, covering more than 130 countries in total.
